MANUFACTURING PROCESS
JCO(E) LINE
Edge Milling
âž¡ï¸ÂÂ

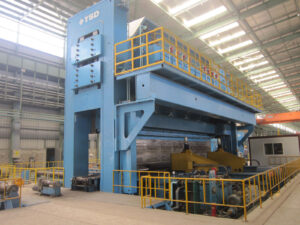

JCO Press
âž¡ï¸ÂÂ
Tack Welding
âž¡ï¸ÂÂ
Inside Welding
⬇ï¸ÂÂ
Outside Welding
⬅ï¸ÂÂ
X-ray Inspection
⬅ï¸ÂÂ

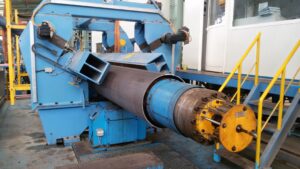

Cold Expanding
⬅ï¸ÂÂ

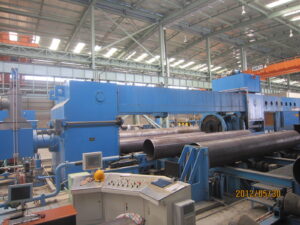

Hydro Testing
⬇ï¸ÂÂ

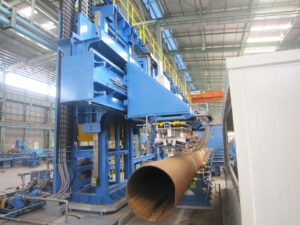

Automated UT
âž¡ï¸ÂÂ
Final X-ray Test
âž¡ï¸ÂÂ
Heat Treatment
âž¡ï¸ÂÂ
Final Inspection
ROLL-BENDER LINE

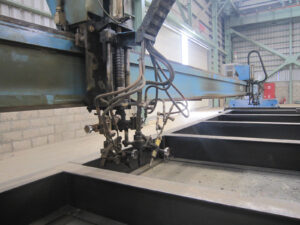

Plate Gas Cutting
âž¡ï¸ÂÂ

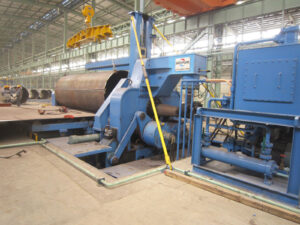

3 Roll Bending
âž¡ï¸ÂÂ
Tack Welding
âž¡ï¸ÂÂ
12M Inside Welding
⬇ï¸ÂÂ
12M Outside Welding
⬅ï¸ÂÂ

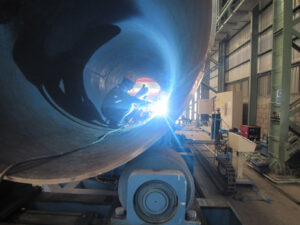

Fitting Up
⬅ï¸ÂÂ

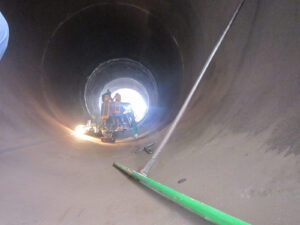

Girth Welding Inside
⬅ï¸ÂÂ
Girth Welding Outside
⬇ï¸ÂÂ
120" Hydro Testing
âž¡ï¸ÂÂ
X-ray Test
âž¡ï¸ÂÂ
Heat Treatment
âž¡ï¸ÂÂ
Final Inspection
